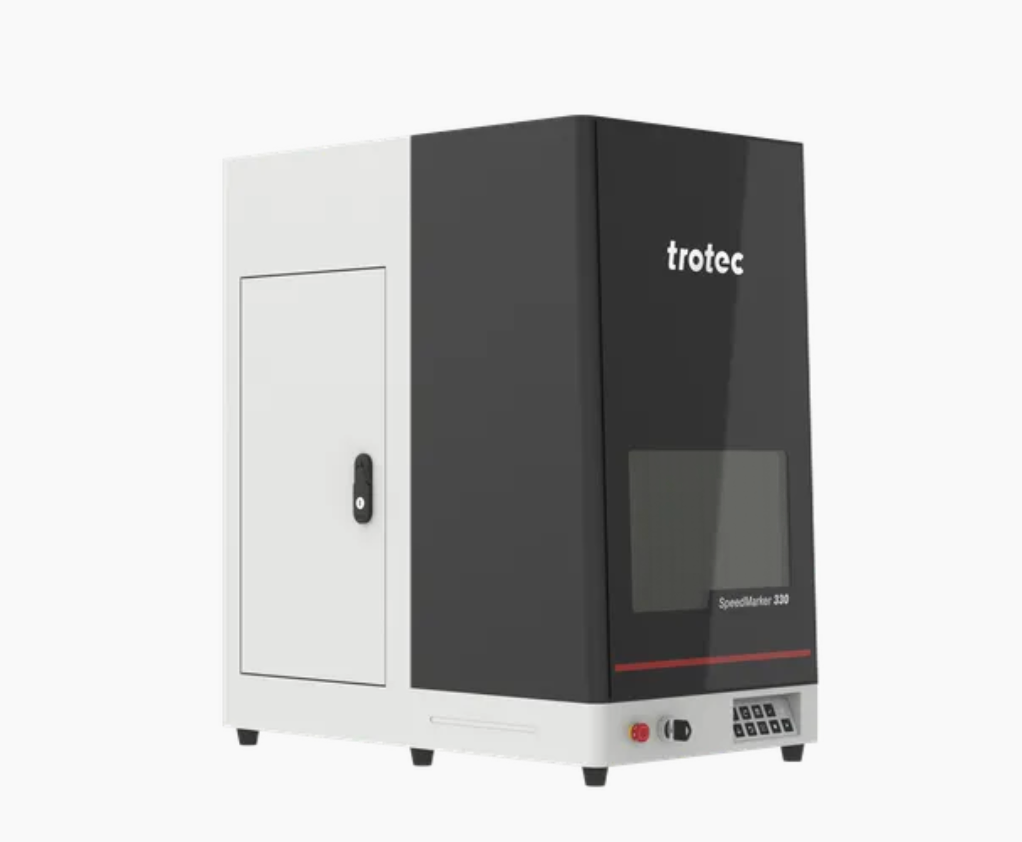

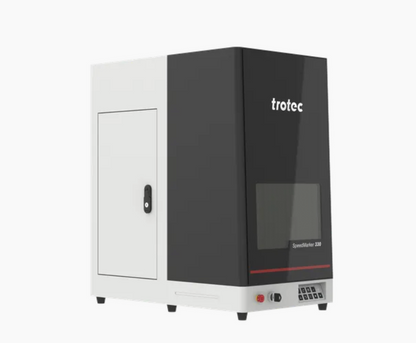

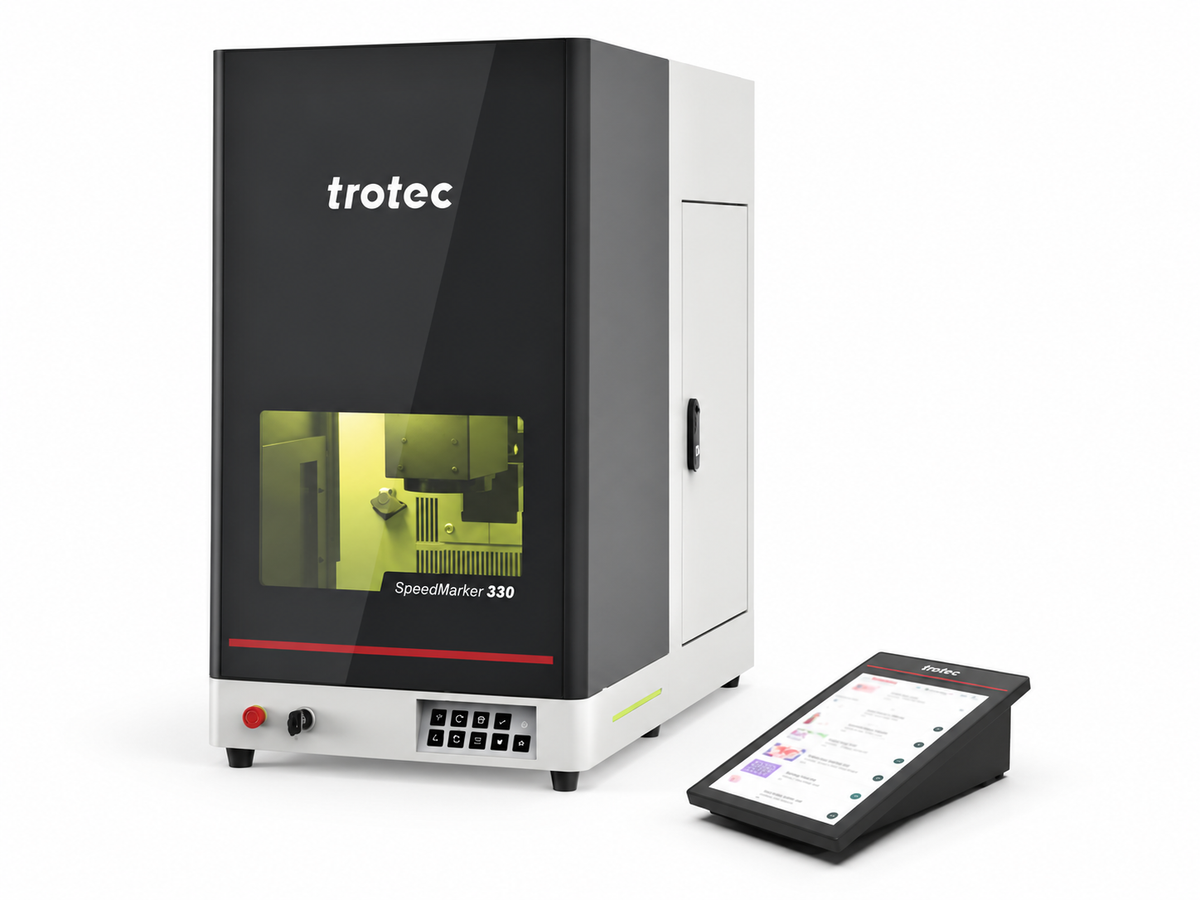

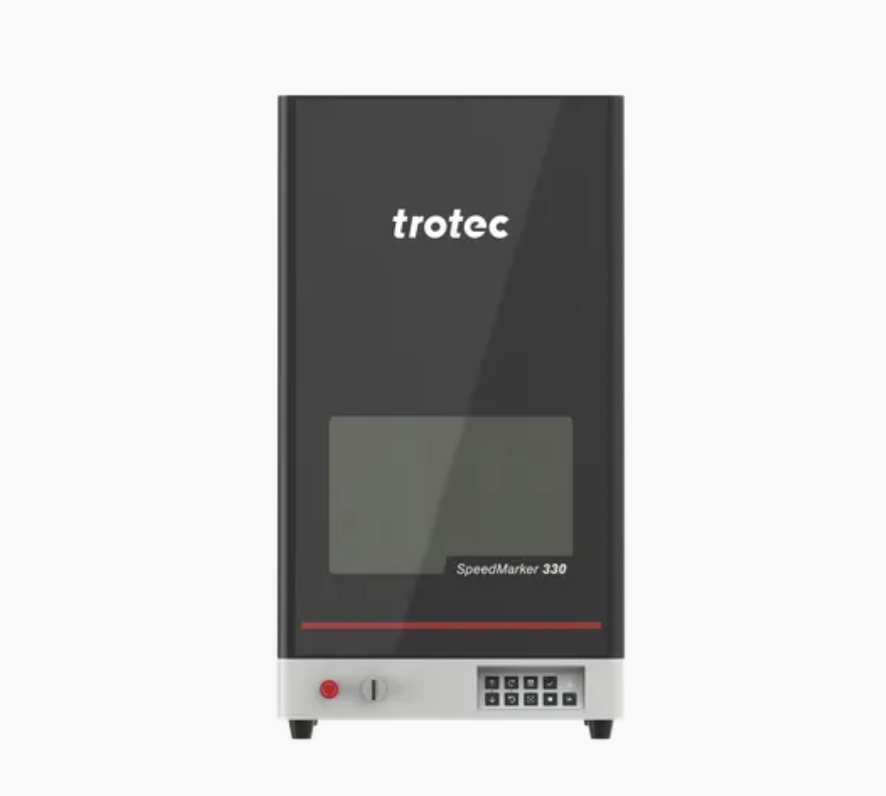

Trotec SpeedMarker 330 fibre marking laser workstationTrotec SpeedMarker 330 – Front ViewTrotec SpeedMarker 330 – Side View
Trotec

Trotec SpeedMarker 330

﷼800,000.00

Shipping calculated at checkout.

In stock
Request a quote
  • Authorised distributor

    Supplied and warranted through Lawazen in Saudi Arabia.

  • Installation and training

    Available for equipment. We confirm the scope before the order.

  • Parts and service

    Certified engineers based in Riyadh, covering the GCC.

  • Talk to a specialist

    Not sure this is the right fit? Ask us before you buy.

About this product

Trotec SpeedMarker 330 – Industrial Fiber Laser Marking System

The SpeedMarker 330 is a high-performance, enclosed fiber laser marking system by Trotec, engineered for precision industrial marking at exceptional speeds. Powered by a 100W MOPA pulsed yttrium-doped fiber laser, it delivers outstanding mark quality on metals, plastics, and more — making it the ideal solution for demanding production environments.

System Specifications

  • Norm: CDRH Laser Safety; Laser Class 2; CE [EN 60825-1]
  • Dimensions (W×H×D): 450 × 806 × 853 mm / 450 × 1102 × 853 mm (door open)
  • Software: Ruby©
  • Laser Source: Pulsed Yttrium Doped Fiber Laser
  • Working Table: T-Slot table incl. threaded positioning holes
  • Door: Automatic
  • Color: RAL 7035, RAL 9005
  • Power Supply: 110–240 VAC, 12A, 50/60 Hz, L/N/PE
  • Max. Power Consumption: 950 W
  • Interfaces: Ethernet, USB, Industrial Interface IOs 24V (3I: Marking-Start, Error-Reset / 3O: Error, Ready, Busy)
  • Min. Required Exhaust: approx. 200 m³/h at 1000 Pa (without piping/tubing) – e.g. Atmos Nano
  • Electrical Cabinet Cooling: Active fan cooled
  • Cabinet Protection Level: IP 20
  • Total Machine Weight: 92 kg
  • Max. Table Load: 50 kg

Laser Source

  • Type: MOPA
  • Laser Power: 100 W
  • Wavelength: 1064 nm
  • Power Stability: 5%
  • Pulse Frequency: 1–4000 kHz
  • Pulse Length: 2–500 ns
  • Beam Quality: M² < 1.6
  • Max. Pulse Energy: 1.5 mJ @ 500 ns

Laser Head Configuration

  • Max. Marking Speed: 7 m/s
  • Pilot and Triangulation Laser: Diode laser λ = 655 nm; Laser Class 2; < 1 mW
  • Lens: F210
  • Marking Field [X/Y]: 150 × 150 mm
  • Working Distance: 290 mm
  • Spot Diameter @ Working Distance: 59 µm
  • Marking Resolution: 2 µm
  • Max. Work Area [X/Y/Z]: 150 × 150 × 130 mm
  • Max. Part Dimension [X/Y/Z]: 375 × 288 × 130 mm

Ambient Conditions

  • Operation: Temperature range +15 to +35°C; Relative humidity max. 60%; Non-condensing
  • Storage: Temperature range 0 to +35°C; Relative humidity max. 60%; Non-condensing
  • Transport: Temperature range -10 to +40°C; Relative humidity max. 70%; Non-condensing
