Trotec E340 RF CO₂ Laser Engraver
Quoted formally, with delivery, installation and training set out line by line. We reply within one working day.
- Authorised distributor
Supplied and warranted through Lawazen in Saudi Arabia.
- Installation and training
Available for equipment. We confirm the scope before the order.
- Parts and service
Certified engineers based in Riyadh, covering the GCC.
- Talk to a specialist
Not sure this is the right fit? Ask us before you buy.
MANUALS & TRAINING
Learn to run it well.
Free online course About 35 minutes
Trotec E340: basic operation
For new operators of the Trotec E340 CO2 laser, including staff trained by company accounts. It covers laser safety, forbidden materials, switching on and off, placing and focusing material, sending a job from Ruby, and daily care.
- Explain the laser class of the E340 and what its safety devices do
- Recognise the materials that must never be lasered
- Switch the machine on and off in the right order
- Place material on the table and focus the laser
Free with your Lawazen account. Training a team? Each person takes it under their own name and gets their own result.
Hands-on training
Our certified trainers teach on real machines: showroom courses, a monthly PD day, or a day at your company on your own machine.
See training courses →About this product

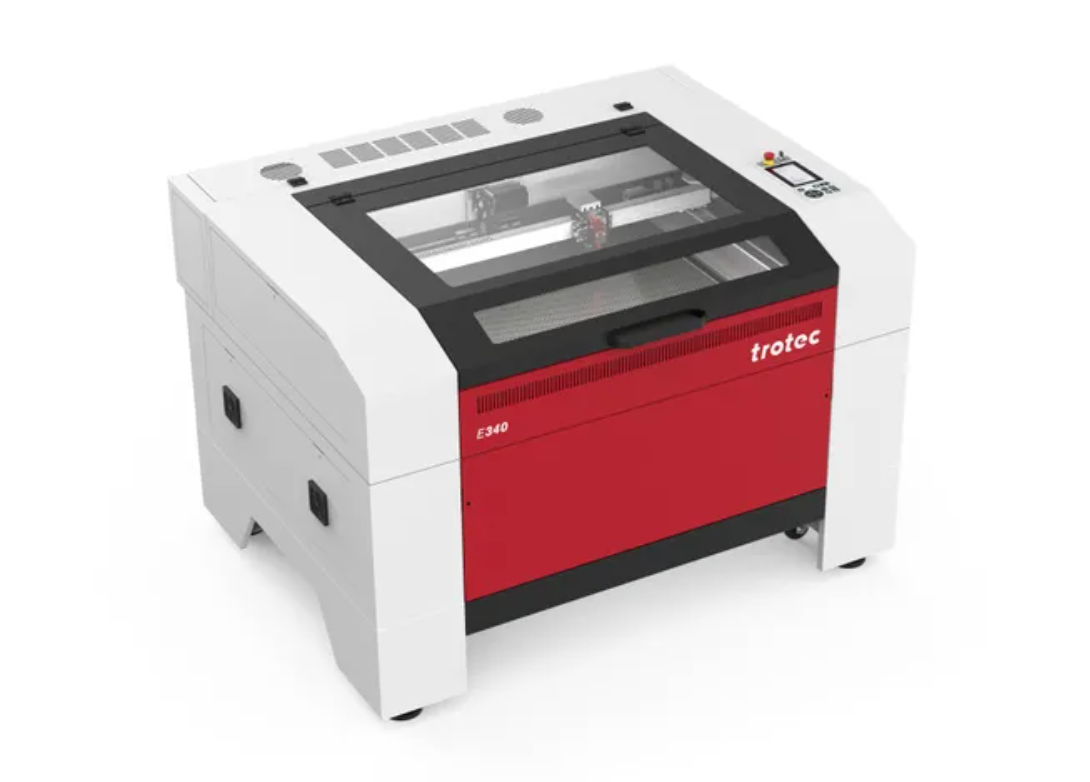

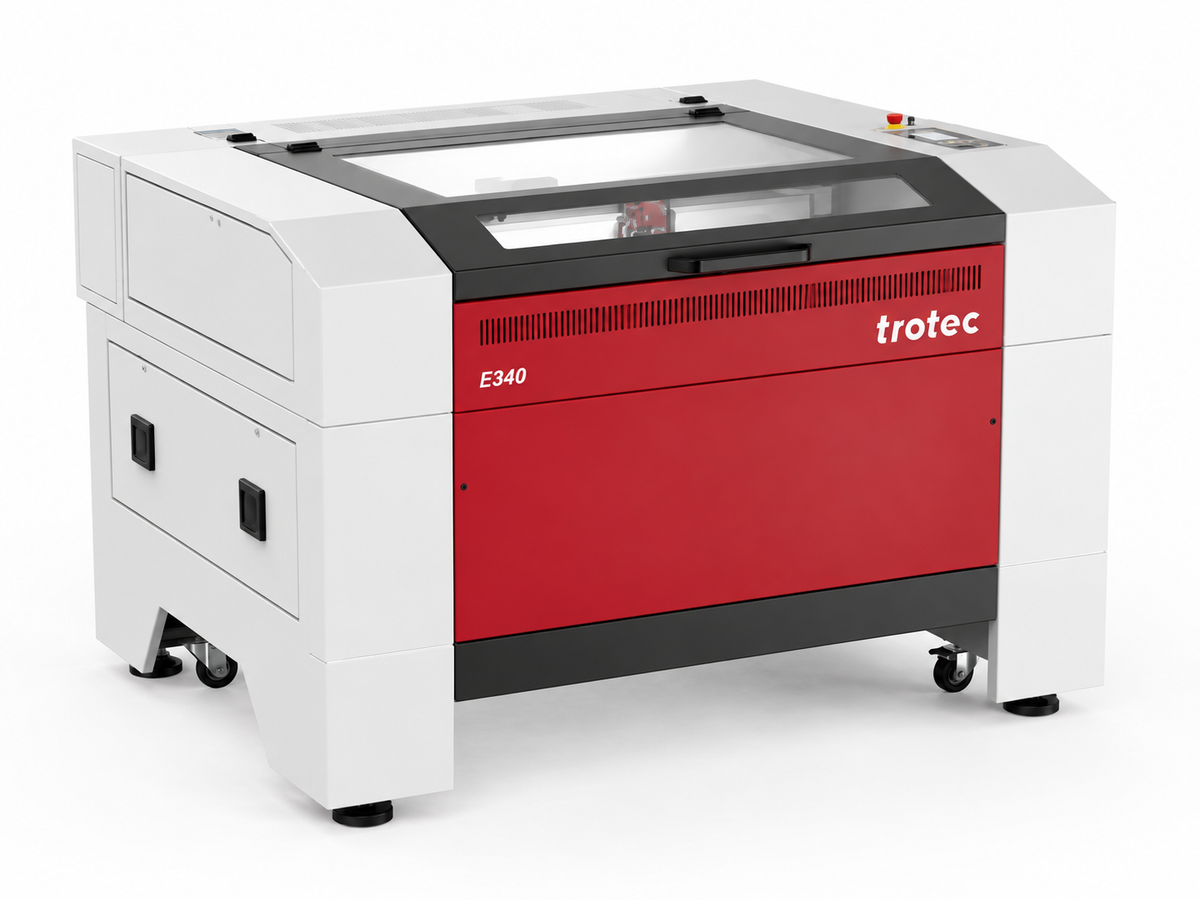

Trotec E340 RF CO₂ Laser Engraver – Professional Laser Engraving & Cutting Machine
The Trotec E340 is a high-performance CO₂ laser engraving and cutting machine built for professional and industrial use. Featuring a sealed RF CO₂ laser, automatic focusing, and Ruby® Essential software, the E340 delivers outstanding precision and reliability for a wide range of materials and applications.

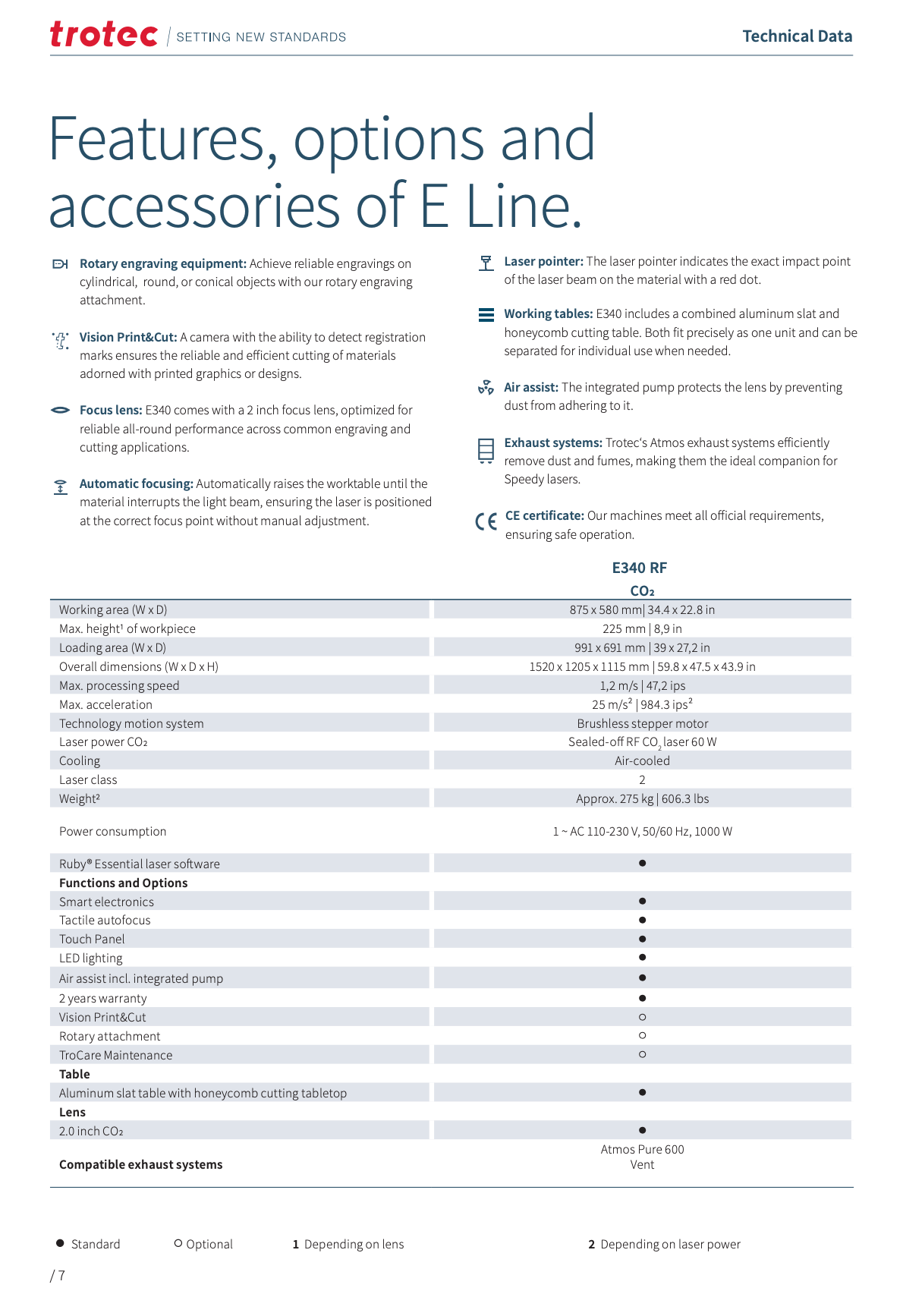

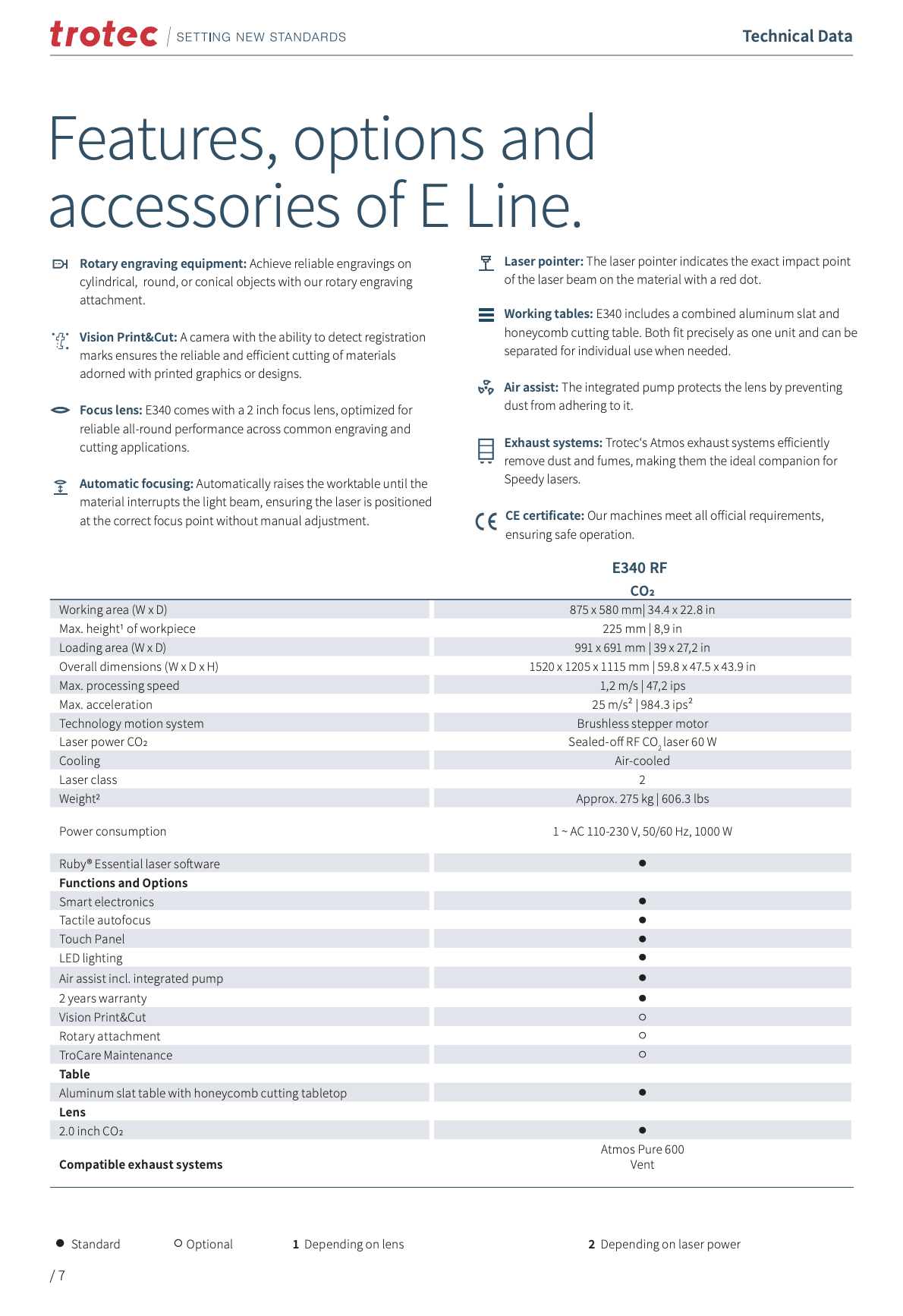

Technical Specifications
- Working Area (W × D): 875 × 580 mm (34.4 × 22.8 in)
- Max. Height of Workpiece: 225 mm (8.9 in)
- Loading Area (W × D): 991 × 691 mm (39 × 27.2 in)
- Overall Dimensions (W × D × H): 1520 × 1205 × 1115 mm (59.8 × 47.5 × 43.9 in)
- Max. Processing Speed: 1.2 m/s (47.2 ips)
- Max. Acceleration: 25 m/s² (984.3 ips²)
- Motion System: Brushless stepper motor
- Laser Power CO₂: Sealed-off RF CO₂ laser, 60 W
- Cooling: Air-cooled
- Laser Class: 2
- Weight: Approx. 275 kg (606.3 lbs)
- Power Consumption: 1~ AC 110–230 V, 50/60 Hz, 1000 W
Standard Features
- Ruby® Essential laser software
- Smart electronics
- Tactile autofocus
- Touch Panel
- LED lighting
- Air assist incl. integrated pump
- 2-year warranty
- Aluminum slat table with honeycomb cutting tabletop
- 2.0 inch CO₂ lens
Optional Features
- Vision Print&Cut
- Rotary attachment
- TroCare Maintenance
Compatible Exhaust Systems
- Atmos Pure 600
- Vent
Key Features & Options
- Rotary Engraving: Achieve reliable engravings on cylindrical, round, or conical objects with the rotary engraving attachment.
- Vision Print&Cut: Camera-based detection of registration marks for precise cutting of printed materials.
- Focus Lens: 2-inch focus lens optimized for reliable all-round performance across engraving and cutting applications.
- Automatic Focusing: Automatically raises the worktable until the material interrupts the light beam, ensuring precise focus without manual adjustment.
- Laser Pointer: Indicates the exact impact point of the laser beam with a red dot.
- Working Table: Combined aluminum slat and honeycomb cutting table — both fit as one unit and can be separated for individual use.
- Air Assist: Integrated pump protects the lens by preventing dust from adhering.
- Exhaust Systems: Compatible with Trotec’s Atmos exhaust systems for efficient dust and fume removal.
